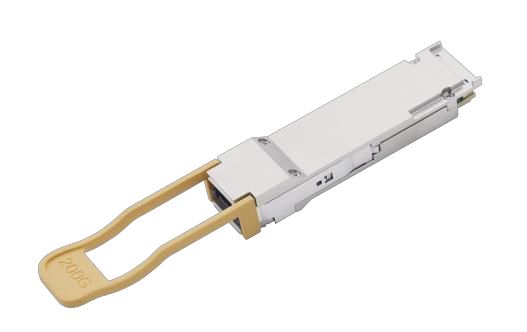

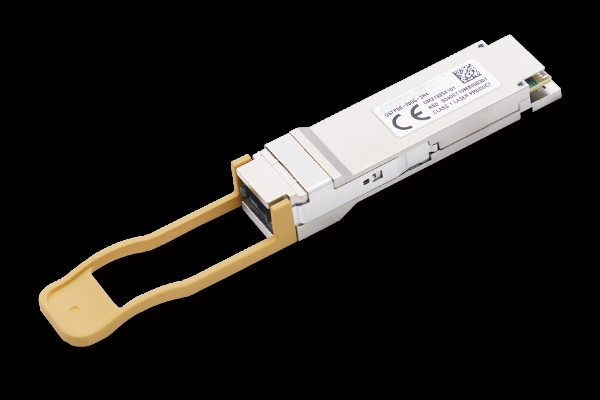

transceiver module QSFP56 200GE SR4 100M OM4 & 70M OM3

OM3738SX101 is a parallel full-duplex 200GE Quad Small Form Factor Pluggable (QSFP56) optical module designed for short-range multi-lane data communication. The optical module uses a 4-level pulse amplitude modulation (PAM4) format. It offers four data lanes based on 850 nm VCSEL/PD array technology, and is capable of an aggregate data rate of 200GE over 100 m OM4 MMF or 70 m OM3 MMF.

It is compliant with the IEEE 802.3cd 200GBASE SR4, IEEE 802.3bs 200GAUI-4 standards. Digital diagnostics functions are available via the I2C interface, as specified by the CMIS4.0 management interfaces.

Figure 2-1: Transceiver block diagram

Figure 3-1: OM3738SX101 mechanical dimensions

• Hot-pluggable QSFP56
• IEEE 802.3cd 200GBASE-SR4 standard compliant
• IEEE 802.3bs 200GAUI-4 standard compliant
• CMIS4.0 Management interface compliant
• Digital diagnostic functions
• 4-channel full-duplex transceiver module
• 212.5 Gbps aggregate bit rate
• Maximum link length of 70 m OM3, 100 m OM4 with FEC
• Single MPO-12 APC/UPC receptacle
• Maximum power dissipation < 5 W
• Operating case temperature range 0°C to 70°C
• Single 3.3 V power supply
• RoHS 2 compliant

• 200G Ethernet
• Data Center Network
