| Type: | Racks & Enclosure | Cable Port(max): | 4ports |
|---|---|---|---|
| Weight: | 3.5kg | Core pacacity Tray: | 4pcs |
| Water proof grade: | IP67 | Dimension (mm): | 474*222*124mm |
| Max capacity: | 96 Core | Material: | ABS+PC |
| إبراز: | IP67 Fiber Optic Enclosure,12F 48C Optic Enclosure,96 Core IP67 Optic Enclosure,12F 48C Optic Enclosure,96 Core IP67 Optic Enclosure |
||

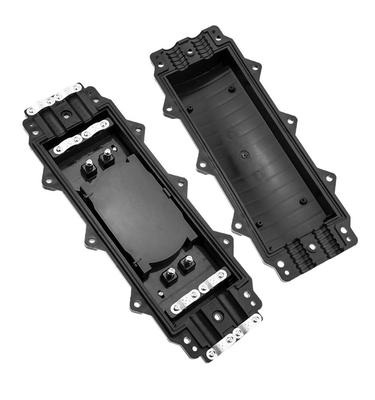

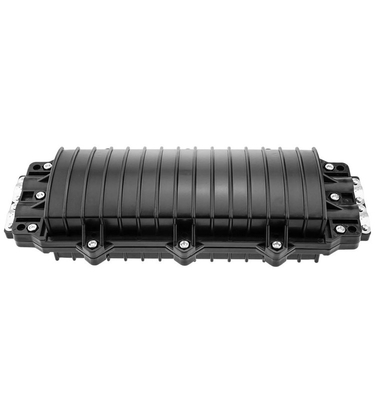

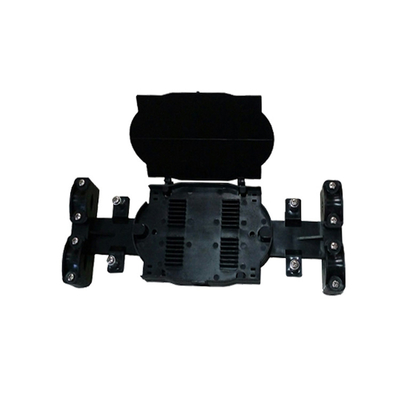

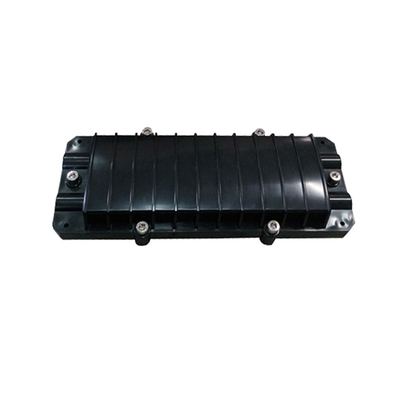

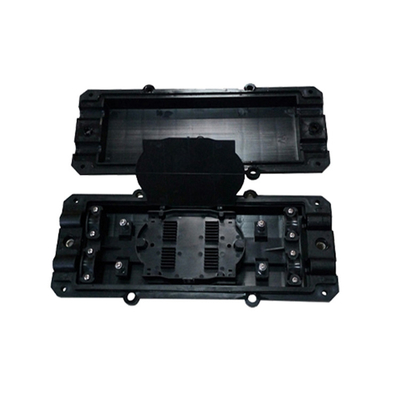

Mini Horizontal 12F 48C 96 Core IP67 Fiber Optic Enclosure
Mini horizontal 12F 48C 96core inline optical fiber cable joint Closure Enclosure
1. Product Introduction
Optic fiber clousure is applied in the junction and protecting of the fiber.It can be place with the aerial cable or buried in earth or put in the pipeline.The outer part and the fusing part of the clousure are made of the project plastic with the virtue.
2. Features
♦ Great mechnical performance
♦ Great resisting aging performance
♦ High airproof,dampproof and resisting,lightning strike performance
♦ Can be place with the aerial cabal or buried in carth put in the pipeline
♦ The in and out channels can be two to six
3. Application
♦ CATV
♦ Telecom,opic fiber communications system
4. Specification
|
Type
|
Fibers/Tray
|
Max. Capacity
|
Suitable Cable Dia. allowed(mm)
|
|
GJS-6020 I(Bunchy)
|
12-24F | 72F |
4 round ports:16mm
|
| GJS-6020II(Bunchy) | 12-24F | 96F | |
| GJS-6020Ⅲ(Bunchy) | 12-24F | 96F | |
| GJS-6020 4 (Bunchy) | 12-24F | 96F |
5. Main Parameters:
Operate temperature:-5℃+40℃
Relative humidity:≤90%(+30℃)
Atmospheric pressure: 70Kpa-106Kpa
Storage Temperature:-40℃+70℃
IP protection:IP67
