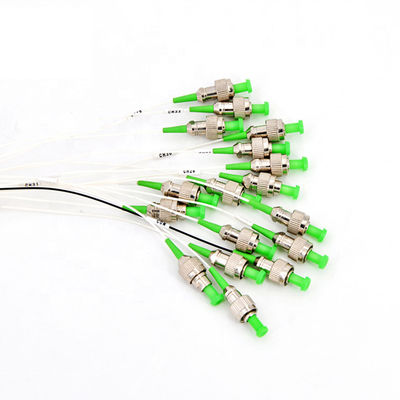

| Model No.: | DWDM | Input/Output connector:: | FC, SC, LC optional |
|---|---|---|---|
| Channel Wavelength:: | ITU 100 GHz Grid | Channel Spacing:: | 100G(0.8nm) |
| Structure:: | Mux or Demux | Pigtail Diameter:: | 0.9mm |
| إبراز: | DWDM MUX DEMUX,16 channel DWDM,100G DWDM,16 channel DWDM,100G DWDM |
||

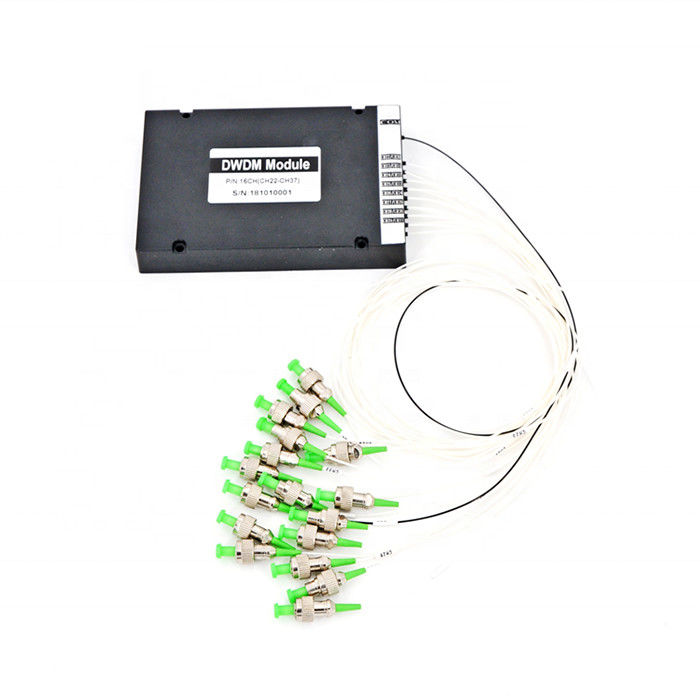

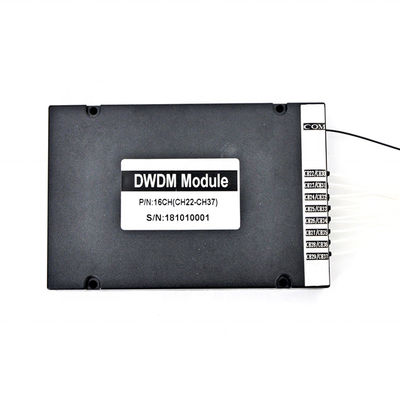

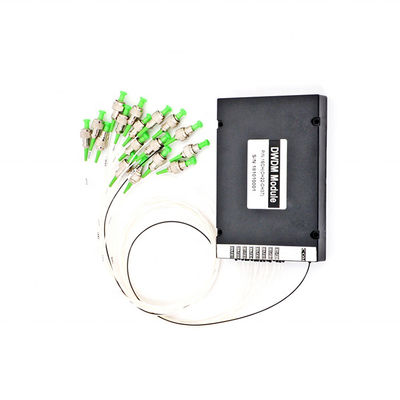

100G 16 Channel DWDM MUX DEMUX For Telecommunication
Fiber Optic Equipment 100G 8 16 channel DWDM MUX DEMUX for Telecommunication
Description
Applications
1. Channel Mux/Demux
2. DWDM system DWDM
3. Router
4. Fiber optical amplifier
5. CATV system
Features&Advantage:
100GHz ITU Channel Spacing (100GHz ITU)
Low insertion loss
broadband transmission
high channel isolation
High stability and reliability
Epoxy-free optical path
Specification
| Parameter | 4-Channel | 8-Channel | 16-Channel | ||||
| Mux | Demux | Mux | Demux | Mux | Demux | ||
| Channel Wavelength(nm) | ITU 100GHz Grid | ||||||
| Channel Spacing(GHz) | 100(0.8nm) | ||||||
| Channel Passband (@-0.5dB bandwidth(nm) | >0.25 | ||||||
| Insertion Loss(dB) | ≤1.8 | ≤3.7 | ≤5.5 | ||||
| Channel Uniformity(dB) | ≤0.6 | ≤1.0 | ≤1.5 | ||||
| Channel Ripple(dB) | <0.3 | ||||||
| Isolation(dB) | Adjacent | N/A | >30 | N/A | >30 | N/A | >30 |
| Non-adjacent | N/A | >40 | N/A | >40 | N/A | >40 | |
| Insertion Loss Temperature Sensitivity(dB/℃) | <0.005 | ||||||
| Wavelength Temperature Shifting (nm/℃) | <0.002 | ||||||
| Polarization Dependent Loss(dB) | <0.1 | <0.1 | <0.15 | ||||
| Polarization Mode Dispersion(ps) | <0.1 | ||||||
| Directivity(dB) | ≥50 | ||||||
| Return Loss(dB) | ≥45 | ||||||
| Maximum Power Handling(mW) | 300 | ||||||
| Opterating Temperature(℃) | -5~+75 | ||||||
| Storage Temperature (℃) | -40~+85 | ||||||
| Package dimension(mm) | A: L100×W80×H10 | ||||||
| B: L120×W80×H18 | |||||||
| C: L141×W115×H18 | |||||||
