| Item: | FC-SC hybrid adapter | FC Side: | Female |
|---|---|---|---|
| SC Side: | Female | Shape: | Rectangle |
| FC Material: | Zinc or Copper alloy | SC Material: | Zinc or Copper alloy |
| Fiber type: | Singlemode / Mutilmode | Type: | Simplex |
| إبراز: | Simplex fc to sc fiber adapter,Female Hybrid Simplex fiber adapter,Zinc Alloy Female fiber adapter,Female Hybrid Simplex fiber adapter,Zinc Alloy Female fiber adapter |
||

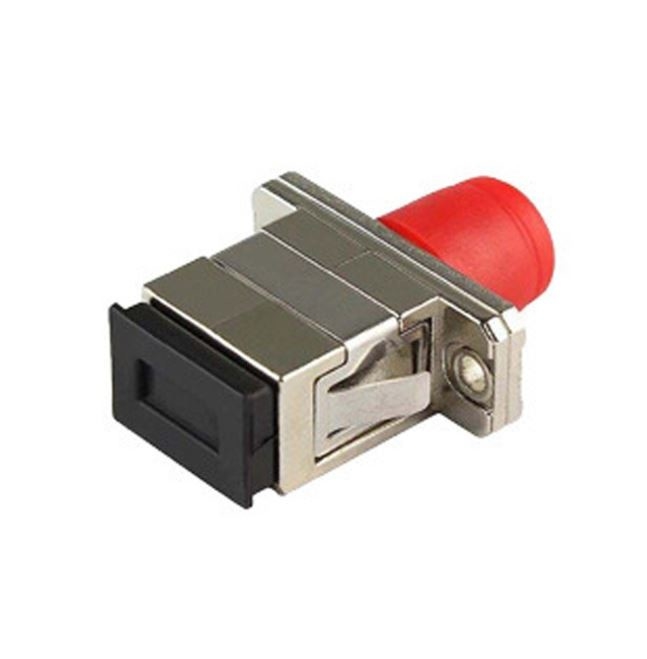

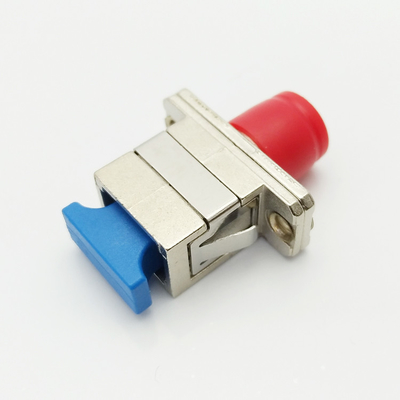

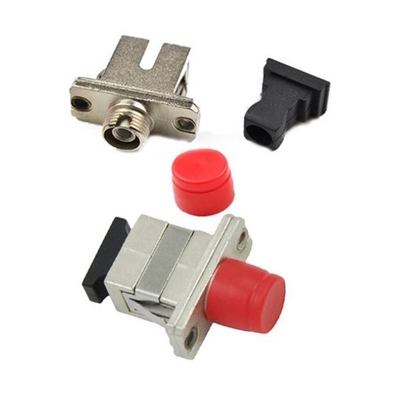

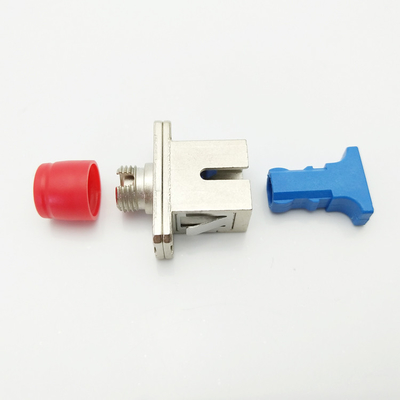

Zinc Alloy Female Hybrid Simplex Fc To Sc Fiber Adapter
FC Female to SC Female Hybrid FC-SC Fiber optic Adapter , Zinc alloy Metal material Coupler
Description:
The FC-SC fiber optic adapter of connector : "SC" connector is a standard square joint, which uses engineering plastics, which has the advantages of high temperature resistance and not easy oxidation. "FC" connector is a metal connector and is generally used on the ODF side. The metal connector can be inserted and removed more times than plastic
We provide Products, AS LC-SC/APC,LC-SC/PC,ST-LC,FC-LC,ST-SC,FC-SC,ST-FC ,etc.
Features:
Low insertional loss
High precision alignment
Nickel plated brass body
Application:
Specification:
| Hybrid adapter type | SC(Female) to FC(FeMale) |
| Fiber tyle | SM 9/125 |
| Insertion Loss | 1310nm<0.3dB 1550nm<0.3dB |
| Return Loss | 1310nm>50dB 1550nm>50dB |
| Material | Zirconium dioxide ceramic |
| weight | 15g |
| size | 4.6cm |
Drawing and Pictures:
