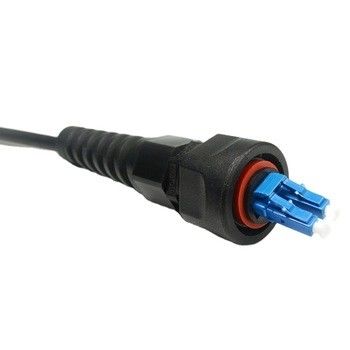

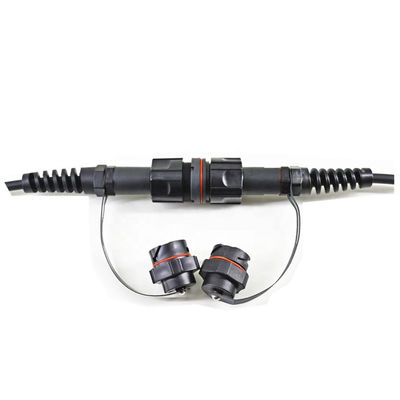

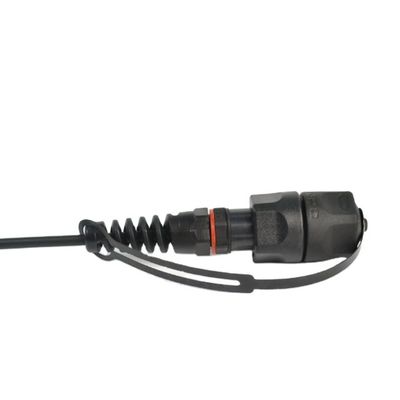

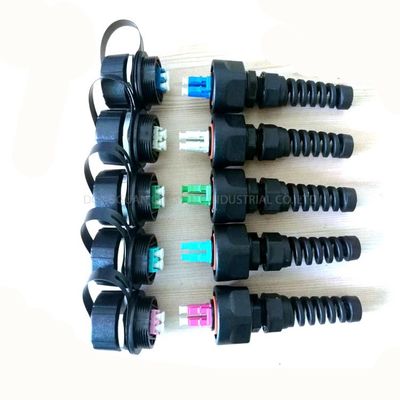

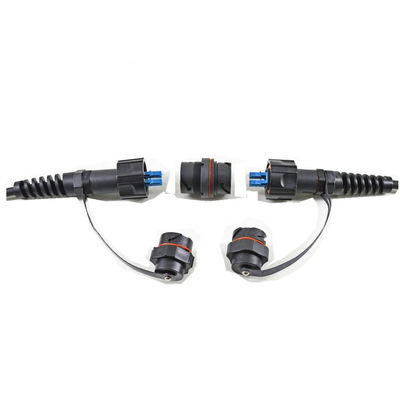

Waterproof Duplex LC ODVA Fiber Optic Connector Assembly

صورة كبيرة : Waterproof Duplex LC ODVA Fiber Optic Connector Assembly

تفاصيل المنتج:

Place of Origin:	Shenzhen China
اسم العلامة التجارية:	CY COM
إصدار الشهادات:	ISO ROSH
Model Number:	LC ODVA

شروط الدفع والشحن:

Minimum Order Quantity:	50pcs
Packaging Details:	PE package bag
Delivery Time:	3-7 days
Payment Terms:	Western Union, T/T
Supply Ability:	100K / Week

مفصلة وصف المنتج

Product name:	ODVA connectors	Color:	Black
Connector:	ODVA/LC	Boot diameter:	5.0/7.0
Material:	PEI	Application:	Telecom networks FTTX CATV
إبراز:	ODVA Fiber Optic Connector Assembly,ODVA Connector Assembly,ODVA Fiber Connector Assembly , ODVA Connector Assembly , ODVA Fiber Connector Assembly

Waterproof Duplex LC ODVA Fiber Optic Connector Assembly

Fiber Optical Waterproof Duplex LC ODVA Connector Assembly Compatible

Description:

Next generation WiMAX and Long Term Evolution (LTE)Fiber/Power/Signal To The Antenna (x-TTA) connectivitydesigns require rugged cable assemblies for outdoor use.For direct connection, these cable assemblies need to plug directly into the optical transceivers or other connector types though a bulkhead construction.

For this specific application, the connector design will need to accommodate for a large tolerance in Z direction. Furthermore, the connector shell must allow for easy one handed mating. This LC outdoor connector sealing systems were designed to function with a very large Z-axis tolerance, hence accommodating for the broadest range of transceivers on the market. This unique feature allows end users to pick almost any transceiver they wish.

Application:

* WiMAX and LTE Base Stations

* Remote Radio Heads (RRH)



* Industrial outdoor applications



* Robotics



* Aerospace & Defense

Feature:

Open bulkhead for easy access to SFP

Positive mechanical feedback to operator when fully mated

One-hand mating

Duplex LC interface

Bulkhead cutout allows for removal of transceiver through the bulkhead (no need to open RRH for transceiver replacement)

Robust bayonet locking for easy, fast, and secure mating

Multimode and single mode

Water proof, dust proof and corrosion resistant.

Expansion to RJ45 and Power possible

Plug has tolerance free design,fully free floating on Z-axis

No cable buckling during or after installation.

Cost effective metal die cast bulkhead

Field installable version available

Specification:

Designed to meet 150 N cable retention
Designed to meet IP67
LC interface
Single- and Multimode
Bayonet style locking
Duplex LC interconnect MM or SM
No tools required
Operating temperature : -40ºC to +70ºC
Mating durability min : 100 cycles.

Waterproof Duplex LC ODVA Fiber Optic Connector Assembly 0
