| Product Name:: | SFP Transceiver | Usel:: | FTTX |
|---|---|---|---|
| Distance:: | 80KM | Wavelength:: | 1310/1550nm |
| Certification:: | CE/ROHS/ISO9001 | Fiber Type:: | singlmode mutilmode |
| إبراز: | Dwdm fiber optic module,10g 80km fiber optic module,Dual Mode Dwdm module,10g 80km fiber optic module,Dual Mode Dwdm module |
||
Features:
Hot-pluggable SFP+ footprint
Supports 9.95 to 10.3 Gb/s bitrates
Power dissipation < 1W
Commercial temperature rang 0C to 70C
Single 3.3Vpower supply
Receiver limiting electrical interface
Duplex LC connector
Built-in digital diagnostic functions
10g sfp+ reach 300m to 80Km(SR LR ER ZR)
All-metal housing for superior EMI performance
Advanced firmware allow customer system encryption information to be stored in transceiver
Application
10GBASE-SR/SW 10G Ethernet
Performance Specifications
Absolute maximum rating
Exceeding the limits below may damage the transceiver module permanently.
|
Item |
Description |
|---|---|
| Transceiver form factor | SFP+ |
| Transmission speed | 10GE |
| Center wavelength (nm) | 1550 |
| Standards compliance | 10GBASE-ZR |
| Connector type | LC Dual |
| Applicable cable distance | Single-mode fiber: 80 km |
| Transmit power (dBm) | 0 to 4.0 |
| Maximum receiver sensitivity (dBm) | -24.0 |
| Overload power (dBm) | -7.0 |
| Extinction ratio (dB) | 9 |
| Operating temperature | 0°C to 70°C (32°F to 158°F) |

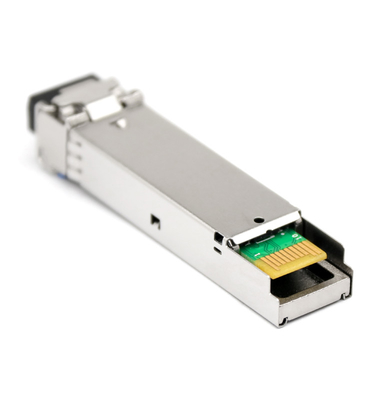

Product show
