تفاصيل المنتج:
شروط الدفع والشحن:
|
| Length: | 1m or customized | إصدار الشهادات: | RoHS,ISO9001 |
|---|---|---|---|
| Cable color: | white,yellow,blue or customer request | Fiber type: | G652D/G657A1/G657A2 etc. |

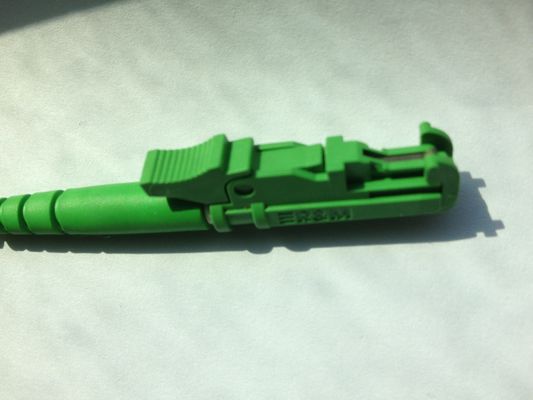

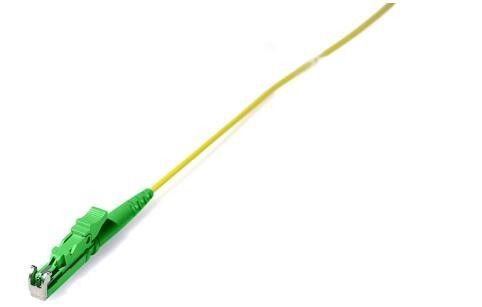

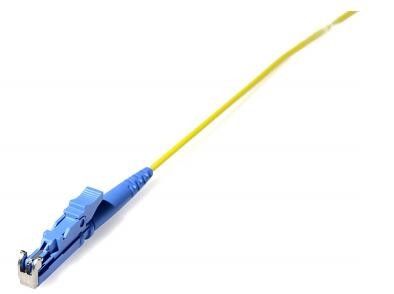

| Connector: | E2000 | Ferrule End-face: | APC UPC |
| Cable diameter: | 0.9mm/2.0mm/3.0mm | Return loss: | >60dB |
| إبراز: | UPC Fiber Optic Pigtail,2.0mm APC Fiber Optic Pigtail,Fiber Optic Pigtail E2000,2.0mm APC Fiber Optic Pigtail,Fiber Optic Pigtail E2000 |
||
| Item | Parameter | Reference | |
| Single mode | |||
| Insertion loss | Typical value≤0.15dB;Maximum≤0.30 | IEC 61300-3-34 | |
| Return loss | ≥ 60dB(APC) | ≥ 30dB(UPC) | IEC 61300-3-6 |
| ≥ 50dB(UPC) | |||
End -Face Geometry
| Item | UPC(Ref : IEC 61755-3-1) | APC(Ref : IEC 61755-3-2) |
| Radius of curvature(mm) | 10--25 | 5-12 |
| Fiber height(nm) | -100--100 | -100--100 |
| Apex offset(μm) | 0-50 | 0-50 |
| APC angle(°) | / | 8°±0.2° |
| Key error(°) | / | 0.2°max |
Order Information:
1. Connector type: SC, LC, ST, FC, E2000, MTRJ, MU, DIN, D4
2. Fiber Type: SM(9/125um), OM1(62.5/125um), OM2(50/125um), OM3(50/125um), OM4(50/125um)
3. Cable count: Simplex or Duplex, bundle pigtail, ribbon pigtail
4. Diameter of cable: 3.0mm(2.8mm), 2.0mm(1.8mm), 0.9mm
5. Cable length: 2Meter, 5Meter, 10Meter, customized length
6. Cable color: Yellow for SM, Orange for OM1 & OM2, Aqua for OM3, Violet for OM4, customized color
7. Outer jacket:PVC Riser cable, PVC Plenum cable, LSZH cable
