1550nm Simplex FC 2.0MM Multimode Armored Patch Cord

صورة كبيرة : 1550nm Simplex FC 2.0MM Multimode Armored Patch Cord

تفاصيل المنتج:

Place of Origin:	Shenzhen
اسم العلامة التجارية:	CY COM
إصدار الشهادات:	ISO ROHS

شروط الدفع والشحن:

Minimum Order Quantity:	10
Delivery Time:	5-10 work days
Payment Terms:	T/T, Western Union, MoneyGram, L/C

مفصلة وصف المنتج

Product name:	Amored patch cord	Cable color:	Blue
length:	1m,2m,3m 100m or customized	Cable Dimension:	0.9mm, 2.0mm,3.0mm
Connector:	LC SC FC ST	Model:	MultiMode
wavelength::	1310nm or 1550nm	Cable type:	G652D, G657A1,G657A,G657B3
إبراز:	Multimode Armored Patch Cord,2.0MM Armored Patch Cord,1550nm Simplex Armored Patch Cord , 2.0MM Armored Patch Cord , 1550nm Simplex Armored Patch Cord

1550nm Simplex FC 2.0MM Multimode Armored Patch Cord

FTTH Armored Fiber Optic Patch Cord, LSZH Jacket

Fiber Optic patch cord is a fiber optic cable used to attach one device to another for signal routing. It includes LC/SC/ST/FC/MTP/MU/MPO connectors, the length and the fiber count can be customized.

Characteristics

light weight, easy to install
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
Steel wire as additional strength member has high tensile strength
Simple structure, light weight and high practicability
Fibers count is 1-12 cores, can be other fiber cores upon request.
Novel flute design, easily strip and splice, simplify the installation and maintenance
Durable and flame retardant LSZH sheath, low smoke zero halogen

Application

Outdoor aerial application
Used in the FTTH projects
High speed optical routes in building
High performance optical network operation

Optical performance:

Test Item		Test Condition	Value(dB)
			UPC	APC
Optical Performance	Insertion Loss	1310nm LED light source	<0.3	<0.3
	Return Loss	1310nm LED light source	>50	>60
Environmental Performance (Max. Insertion Loss change)	High temperature	+85°C168 hours	<0.2
	Temperature Cycle	-40-+75°C, 21 Cycles 168 hours	<0.2
	Humidity Aging	+75°C, 95%R.H,168 hours	<0.2
	Humidity/Condensation Cycling	-10°C-+65°C, 90%~100%RH, 14 cycles 168 hours	<0.2
Mechanical Performance ( Max. Insertion Loss change)	Vibration	10-55Hz, 1.5mm(p-p)	<0.2
	Flex	0.9kg,-90o~+90o repeat for 100 cycles	<0.2
	Torsion	1.35kg,90o~+90o ,10times	<0.2
	Withstand tensile	90N,10min	<0.2
	Drop	H=1.5M,Total of 8 drops	<0.2
	Exchangeability	Randomly	<0.2
	Durability	500 times	<0.2

Quality Guarantee

(1) Source Guarantee. long-term suppliers keep the raw material quality stable. All the products are ROHS certificated and satisfy exporting quality level demand.

(2) Quality Test. 1；Raw materials will be put into production line production only after passing IQC inspection,

2；IPQC inspects the production line to ensure that the production meets the quality requirements.

3；OQC tests product performance and inspects packaging to ensure that each product meets customer quality requirements

(3) Optical Test. Our products comply with IEC and ITU standards

(4) At least 30% spot test by Quality Assurance Department after the products finished.

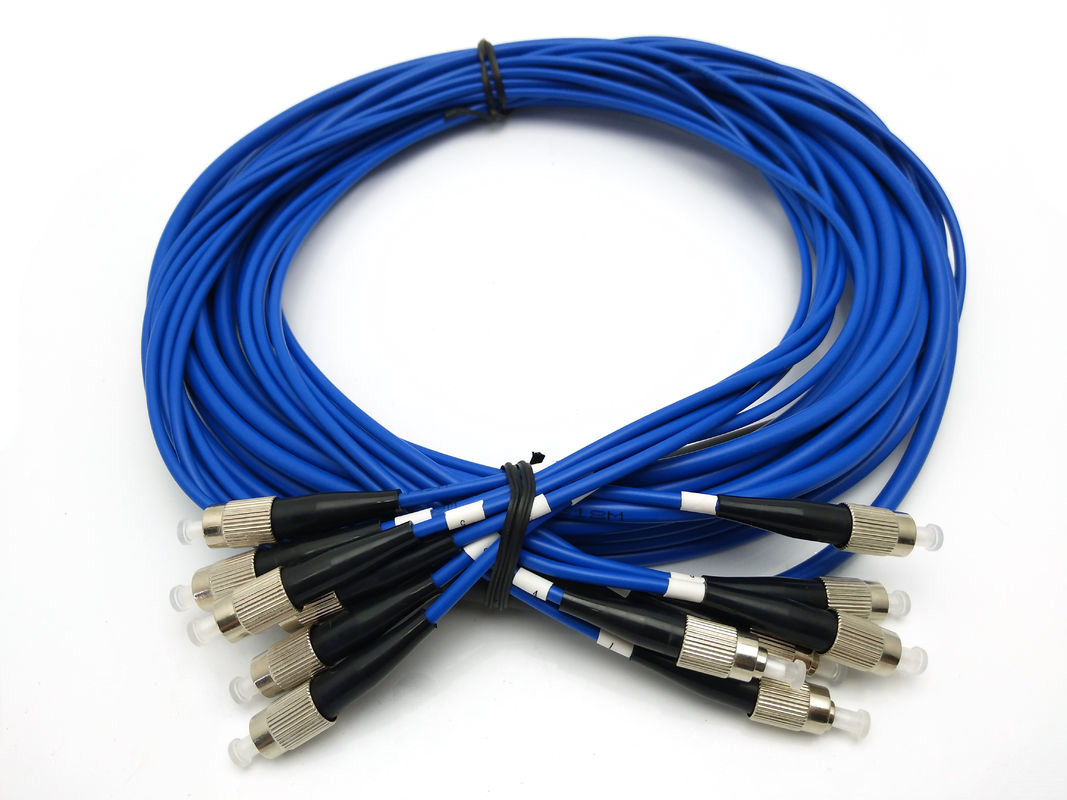

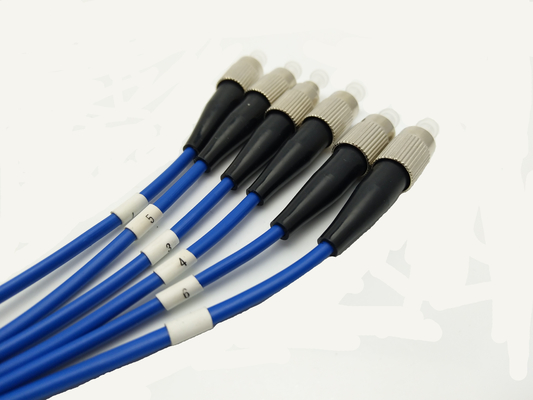

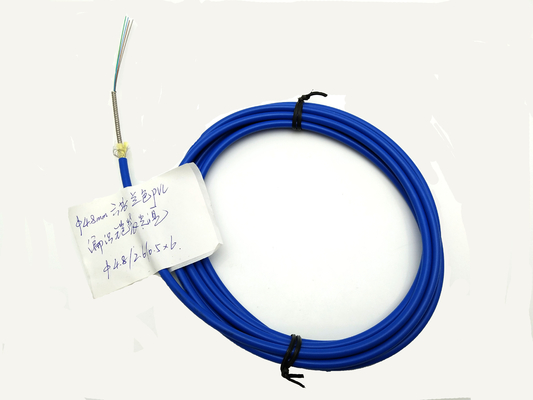

Product picture
