| Polarity: | A/B/C | Loss data: | Elite loss/Standard loss |
|---|---|---|---|
| Connector type: | Female / Male | Cable color: | Orange / Violet / Purple |
| Cable Material: | LSZH / OFNP / PVC | Fiber type: | OM1 / OM2 / OM4 |
| Connector Type: | LC / FC/ SC | Breakout lengthe: | 0.5M / 1M /1.5M / Customized |
| إبراز: | LC DX Fanout Cable,MPO Fanout Cable,OM2 OM4 Fanout Cable,MPO Fanout Cable,OM2 OM4 Fanout Cable |
||
0.5M Mutilmode OM1 OM2 OM4 MPO LC DX Fanout Cable
Mutilmode OM1 OM2 OM4 MPO Breakout Patch Cord 12 core MPO to 6 LC-DX Fanout Cable
Description:
4cores/8cores/12cores/24cores breakout fan-out patch cords, MPO/MTP-SC OM1/OM2/OM3. Key up, Key down types. Short length(<=35cm) used inside of module box.
We supply MTP and MPO fiber optic cables. These are available in Female to female or a male to male and male to female configurations. The male version has MTP pins. These can be made with 12 fiber MTP connectors, 24 Fiber MTP connectors, 48 Fiber MTP connector variations. Many additional options and combinations are available. All multi fiber optic cables are customizable.
Features:
MTP/MPO standard compliant multifibre connector
LC (SFF data center standard), SC discrete interface
OS1/2, OM3, OM4 fibre grades (OM1 and OM2 available)
12 and 24 fibre versions - 12 LC (Duplex) / SC (Simplex) optical parts
Polarity A (standard), B or C
Factory terminated and tested
High performance zirconia sleeve adaptors
Applications:
The Data Center application with high dense degree environment
The optical fiber to the building
The internal connector application in fiber equipment.
Specifications:
| ype/Performance | Singlemode(APC/UPC polish) | Multimode(PC / Flat Polish) | ||
| Standard | Elite Low Loss | Standard | Elite Low Loss | |
| Maximum Insertion Loss | ≤ 0.6dB | ≤ 0.35dB | ≤ 0.5dB | ≤ 0.35dB |
| Return Loss | ≥60 dB | ≥20 dB | ||
| Operating Temperature | -20°C to +70°C | |||
| Test Wavelength | 1310nm | 850nm | ||
Order infomation:
| Range of Mode | Single mode or Multi mode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5 Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -25℃ to +70℃ |
| Storage Temp. | -40℃ to +85℃ |

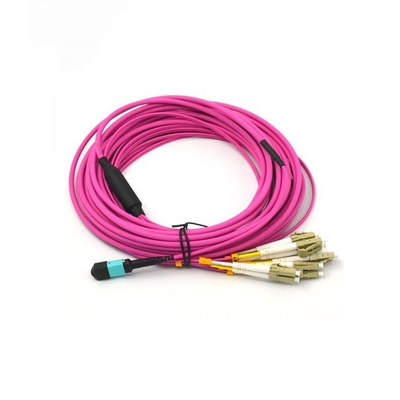

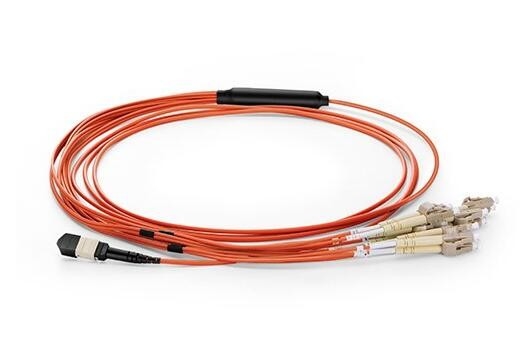

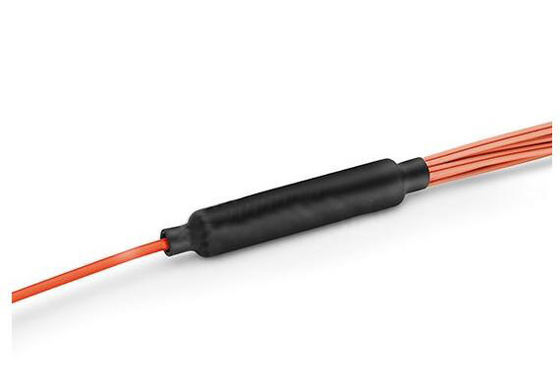

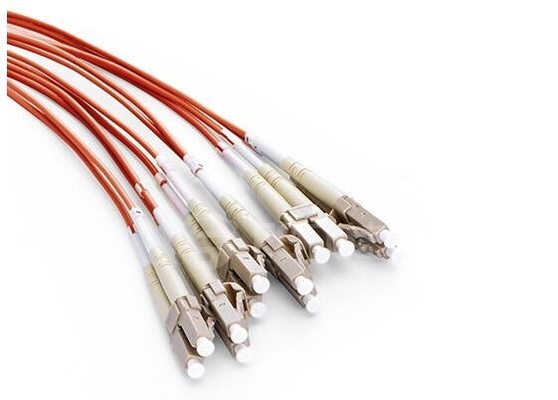

Drawing and Product Picture:
